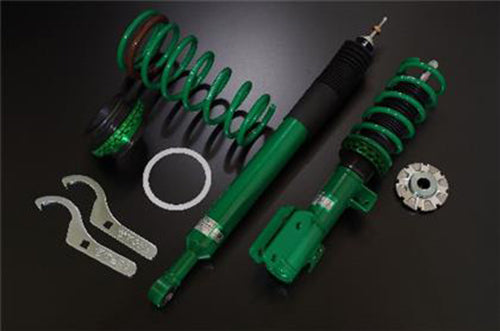

TEIN STREET BASIS Z Coilover Kit Acura RSX DC5 FF 2005-2006 USA

The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.

Front Specifications:Damping Force Adjustment: NFull-Length Ride-Height Adjustable: NUpper Mount: OEMRecommended Ride Height (mm): -50Recommended Ride Height (inch): -2Ride Height Adjustable Range: Max Low (mm): -87Max Low (inch): -3.4Max High (mm): -25Max High (inch): -1Recommended Low (mm): -60Recommended Low (inch): -2.4Recommended High (mm): -40Recommended High (inch): -1.6SpringRate (kgf/mm): 7Rate (lbs/in): 392SP PART#SW070-13175Free Length (mm): 175I.D. (mm): ID70Rear Specifications:Damping Force Adjustment: NFull-Length Ride-Height Adjustable: NUpper Mount: OEMRecommended Ride Height (mm): -55Recommended Ride Height (inch): -2.2Ride Height Adjustable Range: Max Low (mm): -118Max Low (inch): -4.6Max High (mm): -50Max High (inch): -2Recommended Low (mm): -65Recommended Low (inch): -2.6Recommended High (mm): -50Recommended High (inch): -2Spring: Rate (kgf/mm): 9Rate (lbs/in): 504SP PART#SA090-13150Free Length (mm): 150I.D. (mm): ID70Fitment:Year: 2005-2006Make: AcuraModel: RSXDrivetrain: FFChassis: DC5Motor Size: 2000Vehicle Region: USANotes:3Dr/4Cyl. Ft: Lh Has Left-Hand Threads. Be Sure To Tighten In The Correct (Anticlockwise) Direction. (Spring Seat And Lock)Features:Steel ConstructionTwin Tube internal constructionThread Type Ride Height AdjustmentUtilizes OEM Mounts16 way adjustable dampers, compression and rebound combinedHigh Durability and ReliabilityAnodized brackets with Teflon coated shock body for heavy duty rust prevention

Images are for marketing purposes only. Actual item may vary
