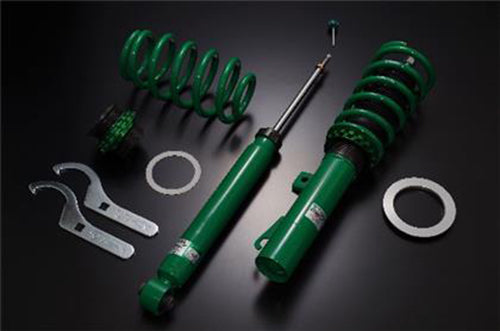

TEIN STREET ADVANCE Z Coilover Kit Acura RSX DC5 FF 2005-2006 USA

The TEIN STREET ADVANCE Z damper is the evolution of the popular Super Street coilover. Developed to provide a sporty ride feeling and aggressive stance, along with wide-range damping force adjustment using our new Advance Needle technology, giving the driver a much more noticeable feel in damping force change. The shortened shell case design provides optimum damper stroke at lower than standard vehicle ride height. Vehicle ride height is adjustable via the ZT coated threaded sleeve. The unique ZT Coating surface treatment on the ride height adjustment thread is abrasion resistant against gravel/debris, and further enhances its corrosion resistance. Each STREET ADVANCE Z has updated internal components and external coatings increase durability and product life. STREET ADVANCE Z dampers are great for daily driving and spirited driving for all types of drivers.

Front Specifications:Damping Force Adjustment: YFull-Length Ride-Height Adjustable: NUpper Mount: OEMRecommended Ride Height (mm): -50Recommended Ride Height (inch): -2Ride Height Adjustable Range: Max Low (mm): -87Max Low (inch): -3.4Max High (mm): -25Max High (inch): -1Recommended Low (mm): -60Recommended Low (inch): -2.4Recommended High (mm): -40Recommended High (inch): -1.6SpringRate (kgf/mm): 7Rate (lbs/in): 392SP PART#SW070-13175Free Length (mm): 175I.D. (mm): ID70Rear Specifications:Damping Force Adjustment: YFull-Length Ride-Height Adjustable: NUpper Mount: OEMRecommended Ride Height (mm): -55Recommended Ride Height (inch): -2.2Ride Height Adjustable Range: Max Low (mm): -118Max Low (inch): -4.6Max High (mm): -50Max High (inch): -2Recommended Low (mm): -70Recommended Low (inch): -2.8Recommended High (mm): -50Recommended High (inch): -2Spring: Rate (kgf/mm): 9Rate (lbs/in): 504SP PART#SA090-13150Free Length (mm): 150I.D. (mm): ID70Fitment:Year: 2005-2006Make: AcuraModel: RSxDrivetrain: FFChassis: DC5Motor Size: 2000Vehicle Region: USANotes:3Dr/4Cyl. Ft: Lh Has Left-Hand Threads. Be Sure To Tighten In The Correct (Anticlockwise) Direction. (Spring Seat And Lock)Features:Steel ConstructionTwin Tube internal constructionLarger piston diameter for strut type front and rear (22mm)16-Way Damping Adjustable with over 200% increase in damping force change.Ride Height adjustable via spring seatPowder coated damper bodyNon-welded ZT coated Adjustment TubeFull-Length Dust Boots1-piece Aluminum Spring Seat with Delrin Thrust WasherOne Year Warranty Against Manufacturer s DefectsEDFC Compatible

Images are for marketing purposes only. Actual item may vary
