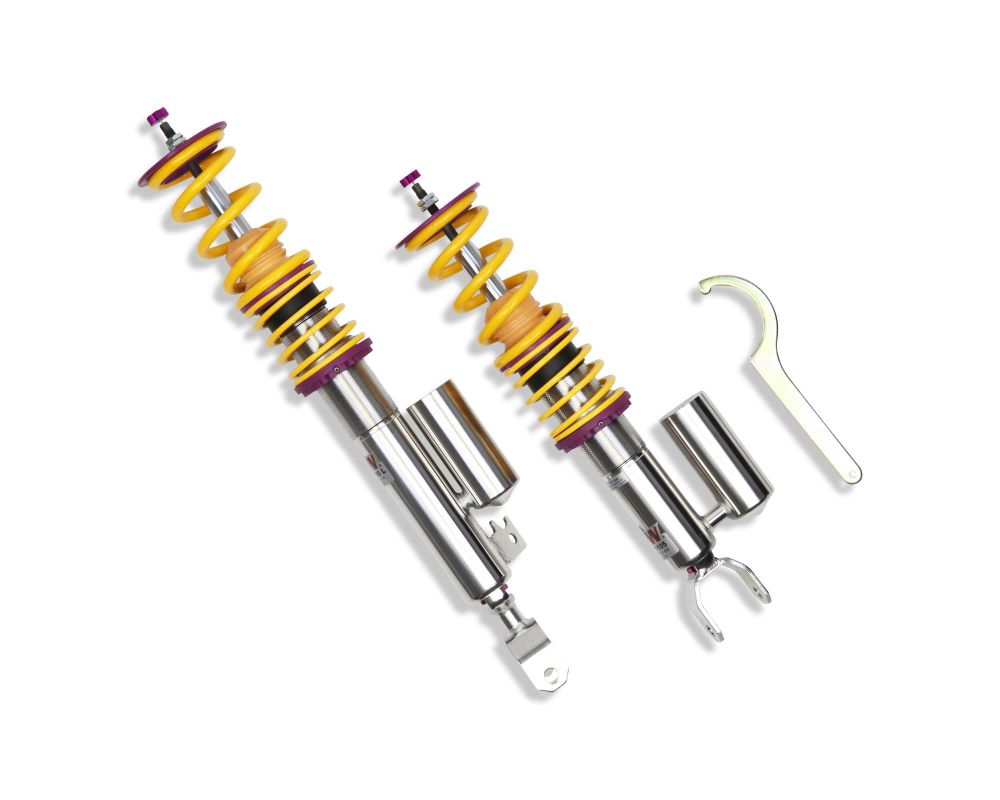

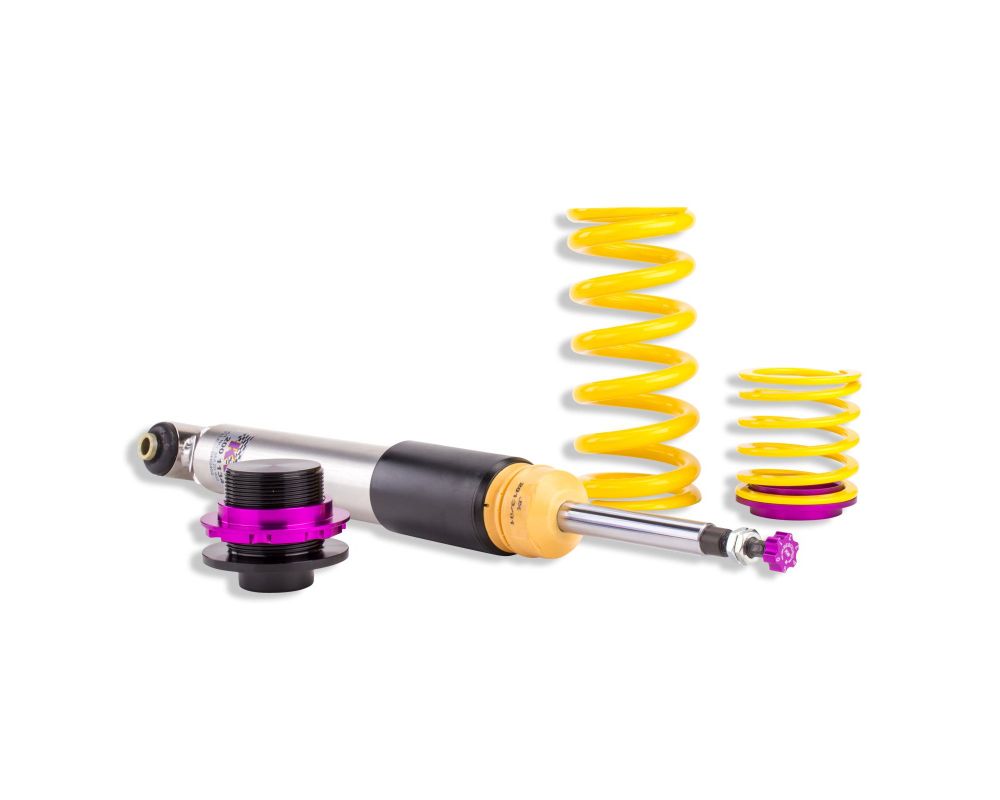

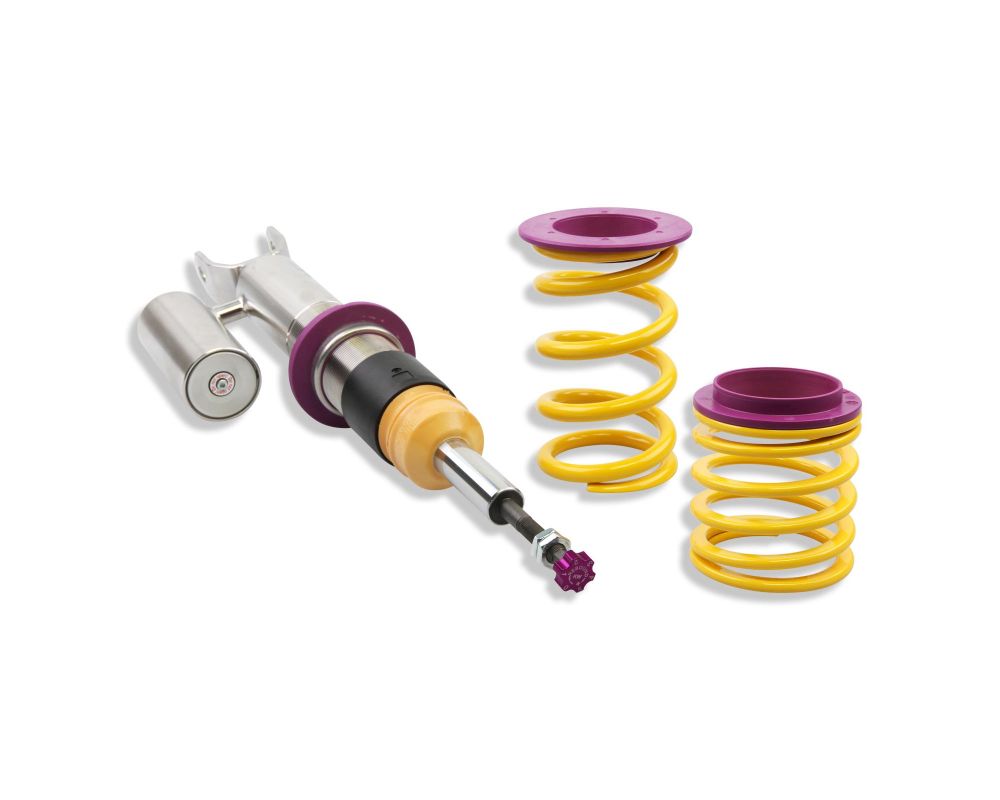

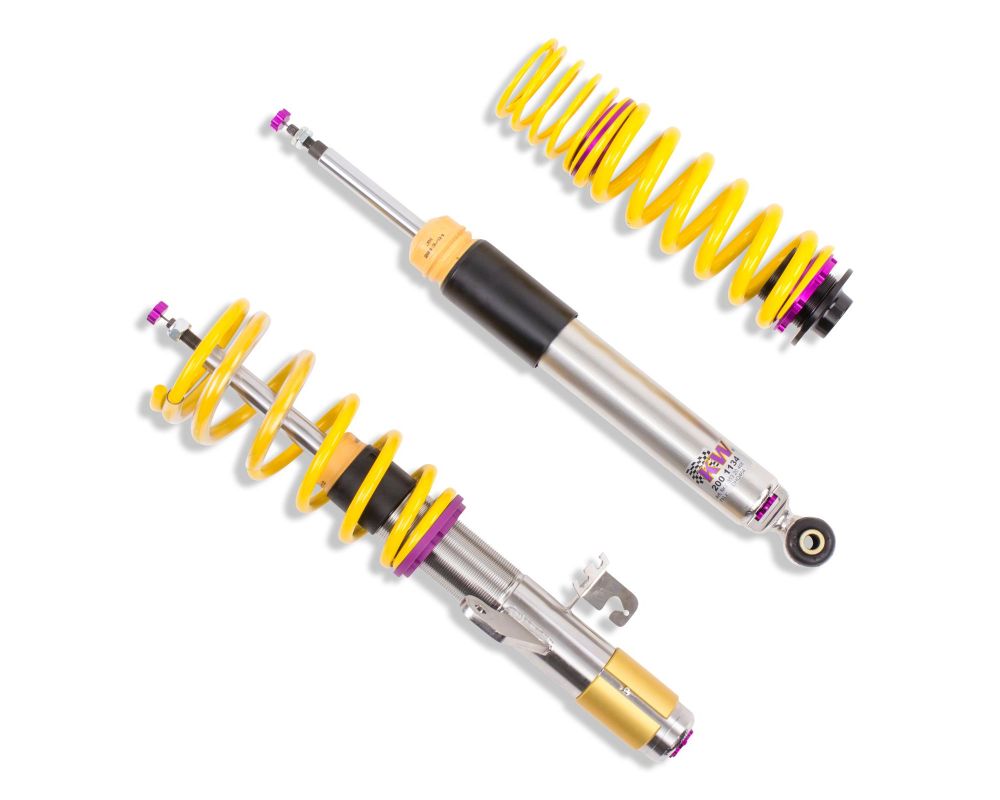

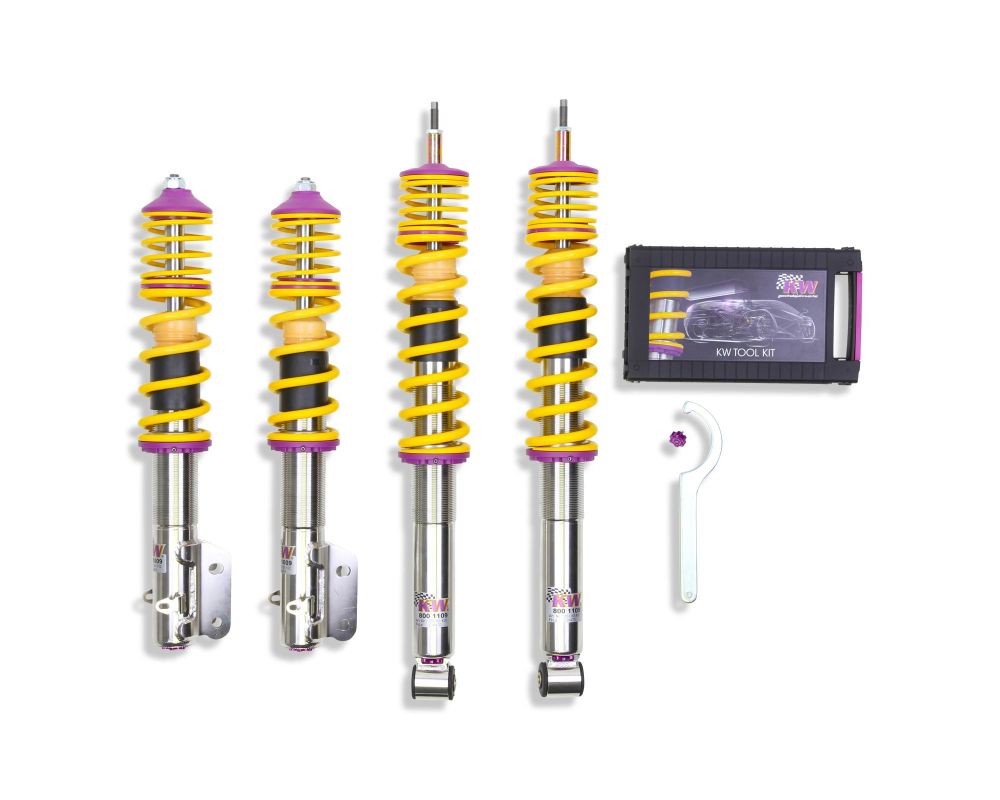

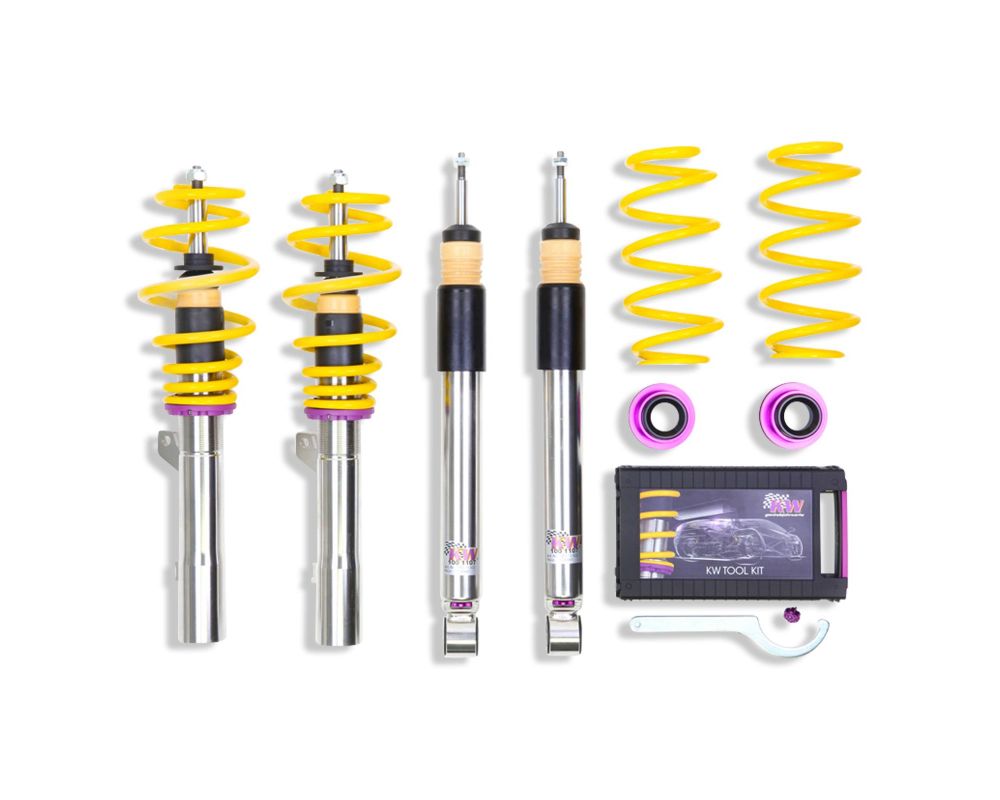

KW Coilover Kit V3 Bundle Chevrolet Camaro Chevrolet Camaro 4, 6, 8 cyl | Camaro ZL1 with EDC 2016+

The KW Suspension Variant 3 Coilover System is state-of-the-art technology derived from motorsports competition for a more precise performance on the road. The separate and independently adjustable rebound and compression Dampening allows for individual suspension setups with different uses and preferences. The unique patented system with its two-stage valves allows a rebound Dampening adjustment (comfort) and a compression adjustment (driving dynamics) in the low-speed range, while the high-speed range which controls the driving safety, is fixed.

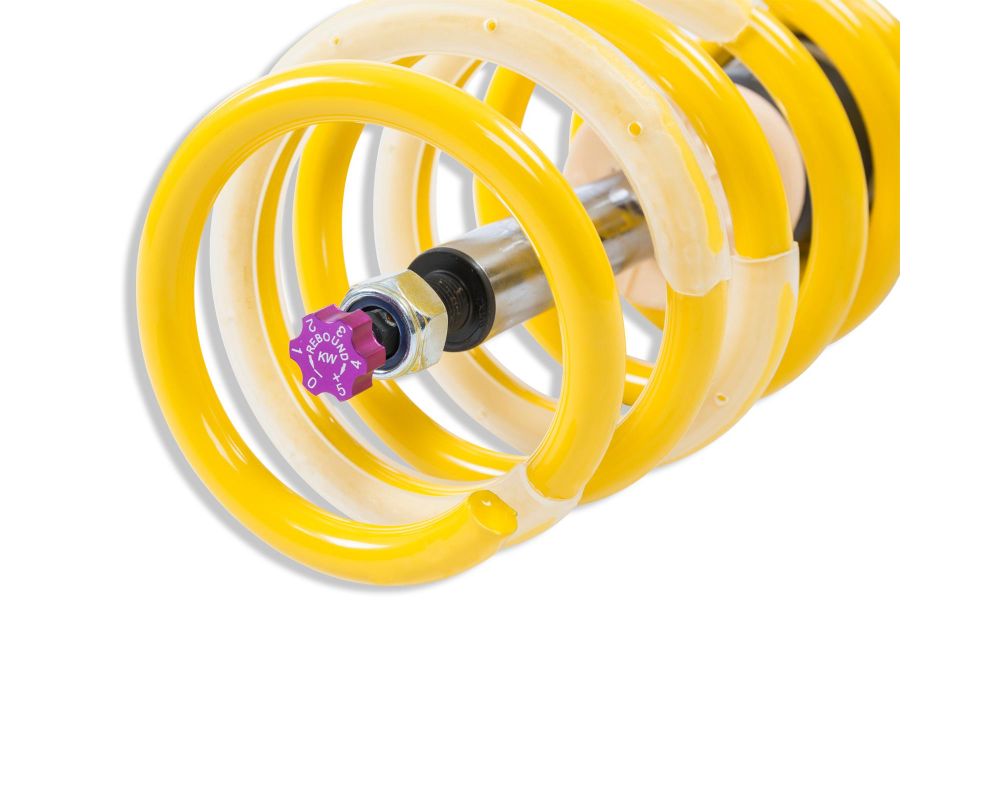

Rebound Adjustment

Being vehicle-specifically possible, the rebound Dampening is adjusted by a spindle at the end of the piston rod. Mainly, the traction phase (rebound) controls car body vibrations and also influences handling and comfort in the low-speed Dampening range.

By using the traction phase adjustment, the vehicle can be adapted to the requirements of the driver. Moreover the driving behavior can be regulated from comfortably rolling to sporty and tense with improved road holding characteristics.

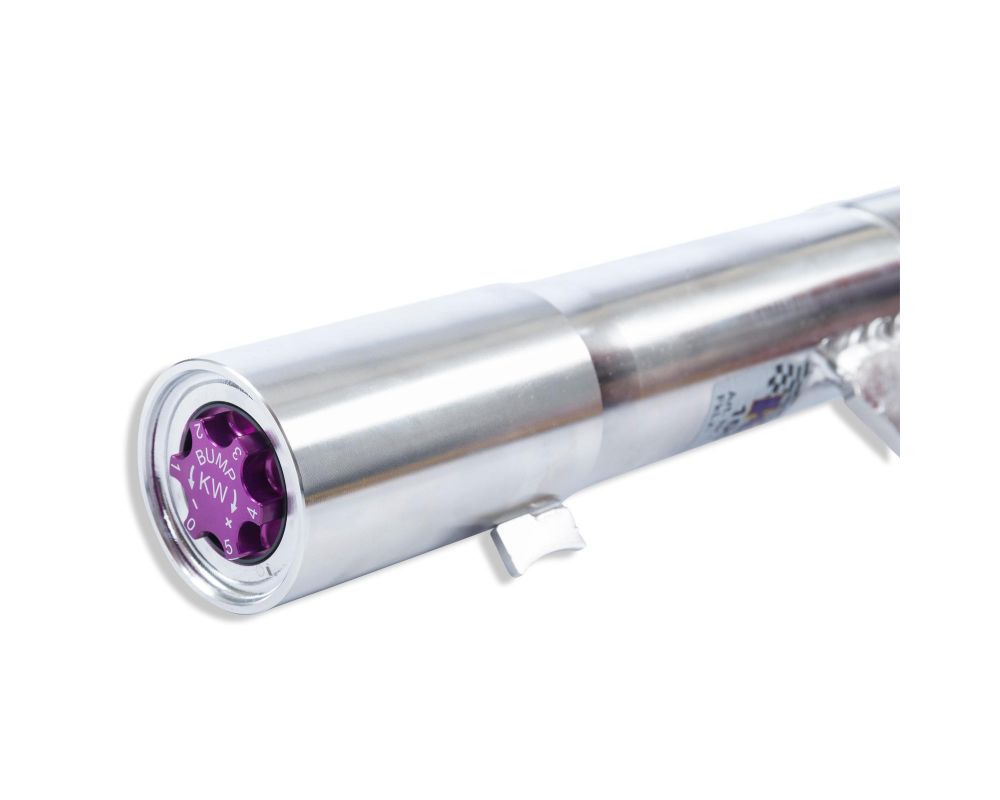

Compression Adjustment

The compression phase adjustment is carried out at the lower end of the shock absorber via KWs patented multi-purpose valve. The large number of pre-set parameters of this valve allows for a wide range of adjustment for individual use. The unique low-speed compression adjustment significantly distinguishes this technology from any other.

In the compression range, the driving behavior of the vehicle is drastically influenced. An increase of the Dampening power supports the vehicle already during compression and therefore avoids rolling and pitching, significantly improving the directional stability.

General Features:Dampening technology with individually adjustable rebound and compressionInox-line stainless steel technologyIndividually height adjustableAdjustment parameters approved by TUVHigh-quality components for long durabilityInfinitely variable rebound Dampening adjustment14-way adjustable compression DampeningUnique, individually working Dampening force adjustmentComprehensive Instructions for easy installationSpecific Features:with adjustable compression and rebound DampeningTÜV approved Front lowering adjustment ranges (min.-max.): 15-35 mm (0.6-1.4 inches) Rear lowering adjustment ranges (min-max): 15-40 mm (0.6-1.5 inches) Front Spring Rate: 285 lbs/inch Rear Spring Rate: 800 lbs/inchFitment:Chevrolet Camaro 4, 6, 8 cyl Coupe, Convertible; withelectronic dampers 2016+ Chevrolet Camaro ZL1 Coupe, Convertible; with electronic dampers 2017+
